HOME > PRODUCT > Network Video Recorders > FHD-NVR series > Lite-C series

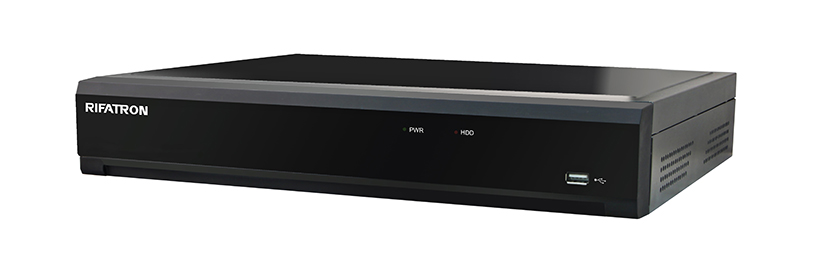

NVR Network Video Recorders
VIEW
Features
    - 2 HDD Bays
  • - Backup
  • - Digital Zoom
  • - DDNS, DHCP, UPnP
  • - Multi-Language Supported
  • - Covert Channel
  • - Two-way Audio
Distinctive Features
  • - Transcoding PB
  • - Push notification
  • - Network Access
  • - Watermarking
General
  • - OS: Embedded Linux
  • - Compression: H.265
  • - Power Supply: 90~250V, 50/60Hz
  • - Operating Temp: 5~40°C
  • - Humidity: 10 ~ 80%
  • - Net Weight (w/o HDD): 3kg
  • - Certification: CE, FCC, RoHS Compliance
Network Software
  • · VMS, RMS
    · Smartphone Viewer : Smart Eyes Pro
  • · Mac Viewer
Dimensions
  • · Size - 378 x 340 x 50mm
FHD-NVR-C
Line Up FHD-NVR-C
Series Lite-C
Model No. MT5-3216 MT5-1616 MT5-0808 MT5-0404
System OS Embedded Linux
Language Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungari, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish, Arabic
Time Sync. NTP, GMT, DST, Time Server
User 15 Users (Admin., User1 ~ User14)
Camera IP Camera ONVIF Profile S
Video Input 32ch / 16ch / 8ch / 4ch
Display Rate Max. 4K
Output Interface HDMI, VGA, BNC
Audio Input  32 IPC / 16 IPC / 8 IPC / 4 IPC
Output  HDMI
Video
Recording		 Compression H.265
Speed

Max.30fps/ch

(4K: 4ch RT, 4MP: 8ch RT, 3MP: 10ch RT, 2MP: 20ch RT)
Resolution 8MP(4K), 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P)
Mode Schedule
Event Motion, Local Sensor
Bit Rate Max. 8Mpbs/ch
Audio
Recording		 Compression G.711u
Audio Sampling Rate Depends on IPC
Audio Bit Rate Depends on IPC
Network Interface Ethernet 10/100/1G x 1
Compression H.265
Speed Max. 2MP 15fps/ch
Resolution Max. 2MP(1080p) 15fps/ch
Backup Interface USB2.0, Network
Format Video clip (Backup viewer), JPEG Still Image
Log list, Setup data
Alarm Post-Alarm 5sec~5min
Motion Grid 22 x15
Alarm Action E-mail, Event Popup, Buzzer, Relay,
PTZ Preset,Remote VMS, Front LED
Display HDMI 4K, FHD, SxGA, XGA
VGA Full HD, SxGA, XGA
TV SDTV(720x480)
External
Interface		 PTZ / Keyboard RS485 - Terminal Block
Storage Primary 2 HDD (Max. 8TB for each HDDs)
External eSATA
Features POE 16 PoE / 16 PoE / 8 PoE / 4 PoE
RTSP Yes
Digital Zoom x1 ~ x16
Fan Fail Yes
Capture 4K
Electrical Input Voltage (NVR) AC 100V ~ 240V, 50/60Hz
Input Voltage (PoE) Embedded
Camera Power Output 802.3at(30w)
Genaral Power Supply 90~250V, 50/60Hz
Operating Temp. 5 ~ 40 OC
Humidity 10 ~ 80%
Weight w/o HDD 3Kg
Dimension 378 x 340 x 50mm
Certification CE, FCC, RoHS Compliance
