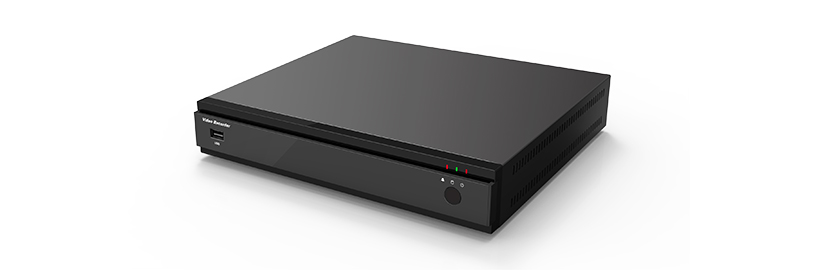

NVR Network Video Recorders
VIEW
Features
    - 1 HDD Bay
  • - Backup
  • - Digital Zoom
  • - DDNS, DHCP, UPnP
  • - Multi-Language Supported
  • - Covert Channel
  • - Two-way Audio
Distinctive Features
  • - RS485 Port
  • - Coaxitron
  • - P2P
General
  • - OS: Embedded Linux
  • - Compression: H.264
  • - Power Supply: TBD
  • - Consumption: TBD
  • - Operating Temp: 5~40°C
  • - Humidity: 10 ~ 80%
  • - Net Weight (w/o HDD): 2.5kg
  • - Certification: CE, FCC, RoHS Compliance
Network Software
  • · VMS, RMS
    · Smartphone Viewer : Smart Eyes Pro
  • · Mac Viewer
Dimensions
  • · Size - 260 x 44 x 237mm
FHD-NVR
Line Up FHD-NVR
Series Kute
Model No. EH5-0404
System OS Embedded Linux
Language Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungari, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish, Arabic
Time Accuracy 5ppm (12.5sec/month)
Time Sync. NTP, GMT, DST
User 15 Users (Admin., User1 ~ User14)
Access Front button, Mouse, Remocon, Network, Key controller
Hexaplex Live monitoring, Recording, Playback, Backup, Network, Setup
Upgrade USB2.0 Memory stick, Network
Camera IP Camera ONVIF
Video System NTSC / PAL
Input 4ch
Display Rate Max. 1080p
Output Interface HDMI, VGA
Audio Input Interface 4 IPC
Output Interface HDMI
Video
Recording		 Compression H.264
Speed Max.120fps
Resolution Max. 2MP/ch
Mode Continous, Event, Free Event
Audeo
Recording		 Compression G.711
Audio Sampling Rate Depends on IPC
Audio Bit Rate Depends on IPC
Playback Search Go to first rec. time, Go to last rec. time,
Go to last search time,
Calenda, Log viewer, Smart search,
Multi-time & day search, Event search
Mode Event only playback, Backward,
Pause, Frame by frame, Speed up (x1 ~ x32, x300)
Network Interface RJ45 (Ethernet 10/100/1G) x 1
Compression H.264
Speed Max. 2MP 15fps/ch
Resolution Max. 2MP(1080p)
Backup Interface USB2.0, Network
Format Video clip (Backup viewer), JPEG Still Image
Log list, Setup data
Booting Live 40sec
Recording 50sec
Alarm Post-Alarm 5sec~5min
Alarm Action E-mail, Event Popup, Buzzer, Relay,
PTZ Preset,Remote CMS, Front LED
Display HDMI FHD
VGA FHD
Camera Title Name English : 20 characters, Chinese, Japanese, Korean : 10 characters
External
Interface		 PTZ / Keyboard 2 RS485 - Terminal Block
Storage Primary 1 HDD
Features POE 4 PoE
Digital Zoom x1 ~ x16
Watermarking Yes
Detection / Search Motion
Fan Fail Yes
E-mail 5 Users
Capture 1080p
DDNS, DHCP, UPNP Yes
CMS, VMS, RMS Windows
Smart Phone (3G) Android, iPhone, iPad
Mac Viewer Apple Mac OS
Electrical Input Voltage (NVR) TBD
Genaral Power Supply TBD
Operating Temp. 5 ~ 40 OC
Humidity 10 ~ 80%
Weight w/o HDD 2.5Kg
Dimension 260 x 44 x 237 mm
Certification CE, FCC, RoHS Compliance
